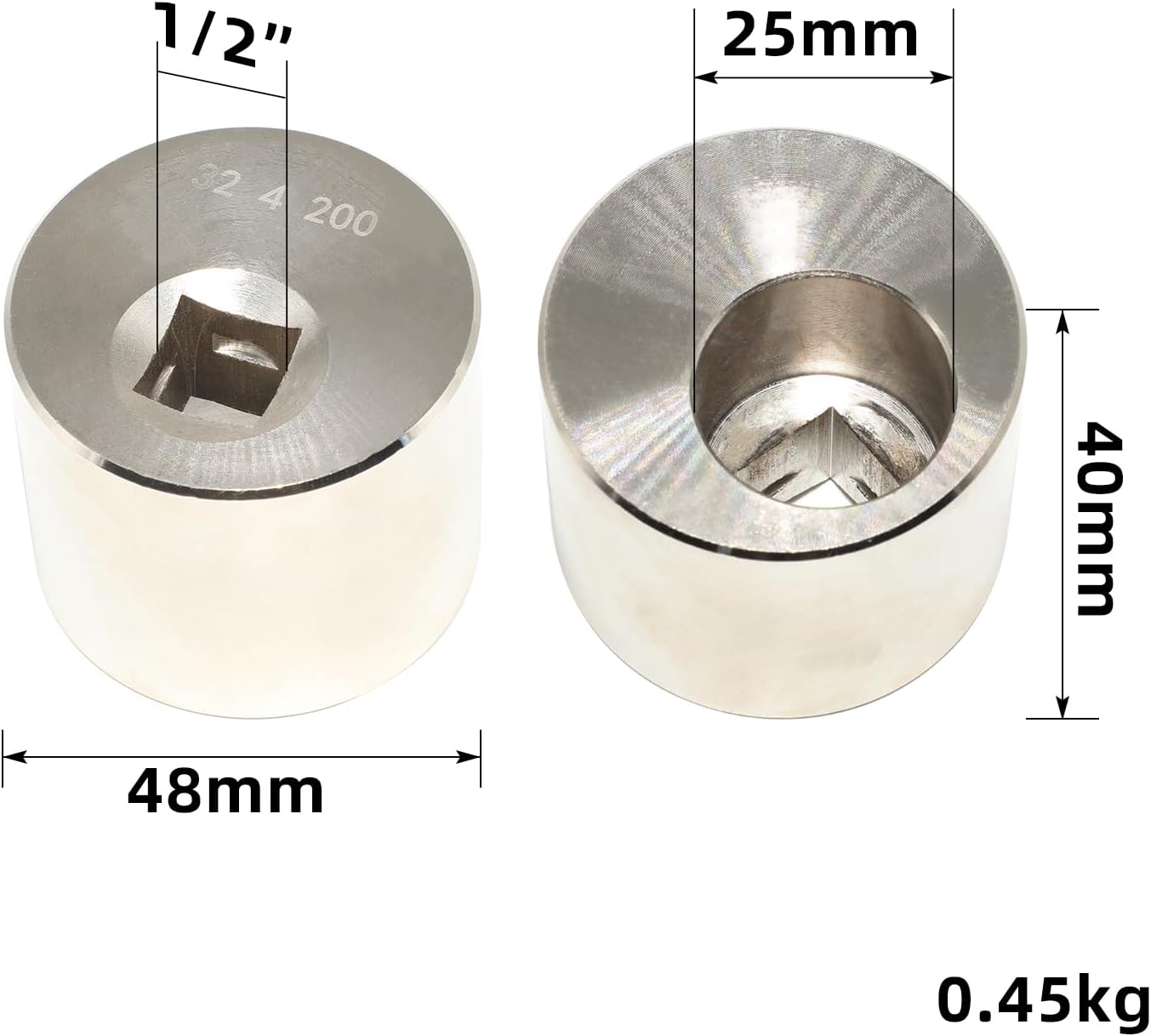

Rear Axle Toe Adjustment Tool for BMW mini Wheel Alignment Special Tool, Model 324200

The Rear Axle Toe Adjustment Tool (Model 324200) for BMW Mini is a specialized tool used for adjusting the rear axle alignment, specifically the toe angle. It plays an essential role in ensuring the vehicle's wheels are aligned properly, contributing to even tire wear, better handling, and overall vehicle safety.

Purpose:

The rear axle toe adjustment tool is used in wheel alignment procedures to adjust the toe settings on the rear axle of BMW Mini vehicles. Toe refers to the direction in which the tires point relative to the centerline of the vehicle, and it's crucial for achieving accurate alignment.

• Toe-in: When the front of the tires points inward toward the centerline of the car.

• Toe-out: When the front of the tires points outward, away from the centerline.

An incorrect toe setting can lead to:

• Uneven tire wear

• Poor handling or steering response

• Excessive fuel consumption

Features of Model 324200:

The BMW Mini Rear Axle Toe Adjustment Tool (Model 324200) typically has these features:

• Precision Fit: Designed to work specifically with the rear axle of BMW Mini vehicles, ensuring accurate and efficient adjustments.

• Durable Construction: Often made of high-strength steel or aluminum to handle the stresses of alignment work.

• Adjustability: Allows precise control over the toe settings, ensuring that the alignment is accurate.

• Simple Operation: Typically designed for ease of use by professional mechanics and car enthusiasts.

Common Usage Steps:

1. Prepare the Vehicle for Alignment:

   • Raise the rear of the vehicle using a hydraulic jack and place it on secure jack stands.

   • Ensure the car is on a flat, level surface to get accurate alignment results.

   • Remove the wheels if necessary to access the rear axle and suspension components.

2. Loosen the Adjustment Nut:

   • On the rear axle, locate the toe adjustment screws or bolts that control the toe angle of the wheels. These are usually found at the rear of the axle assembly.

   • Loosen the adjustment nut or bolt that locks the toe setting in place.

3. Install the Tool:

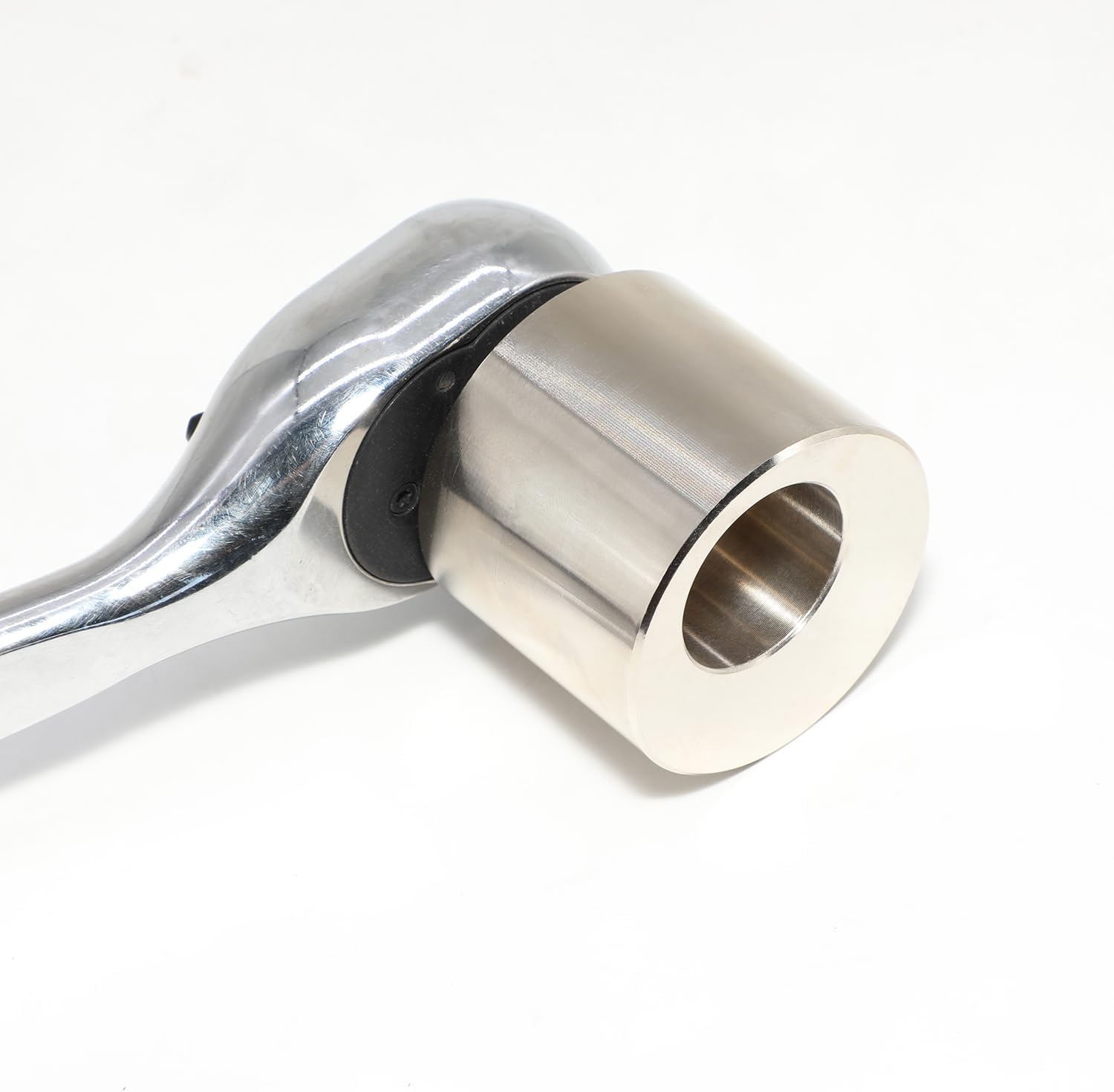

   • Attach the rear axle toe adjustment tool (Model 324200) to the vehicle’s adjustment mechanism. This tool will fit into the adjustment points and allow you to make precise adjustments to the toe angle.

4. Make the Adjustment:

   • Use the tool to make the necessary toe adjustments. It may require turning or sliding parts of the tool to move the axle or adjust the alignment of the rear wheels.

   • Ensure the tool moves smoothly and precisely to achieve the correct toe setting.

5. Double-Check Alignment:

   • After adjusting, re-tighten the adjustment nut/bolt to lock the setting in place.

   • It's recommended to measure the toe angle with a wheel alignment tool or have the car aligned on a professional alignment machine to ensure the correct specifications are met.

6. Test Drive and Inspect:

   • After making the adjustments, test drive the vehicle to ensure proper handling and alignment. If the vehicle still pulls to one side or there’s unusual tire wear, additional adjustments may be necessary.

7. Reassemble and Lower the Vehicle:

   • Once the alignment is set, reassemble any components you removed and lower the vehicle back to the ground.

   • Re-check the alignment if possible, or consider taking the vehicle to a professional alignment shop for final verification.

Commonly Supported BMW Mini Models:

• BMW Mini Cooper (R50, R53, R55, R56, R57, etc.)

• Mini Clubman (R55)

• Mini Countryman (R60)

It's always essential to check the specific model and year of your vehicle to confirm compatibility before proceeding.
