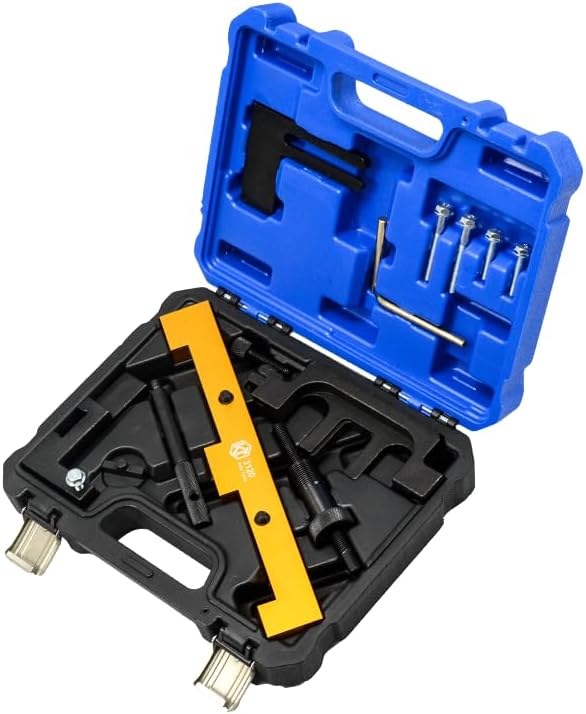

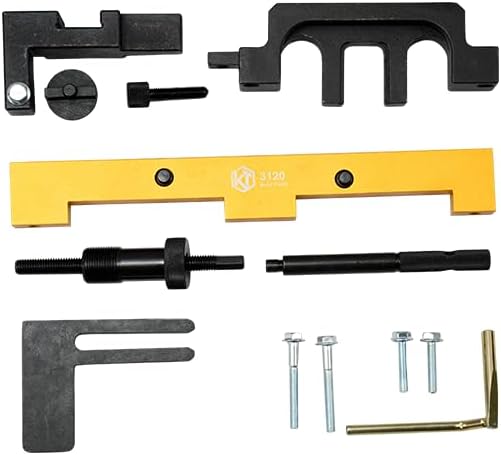

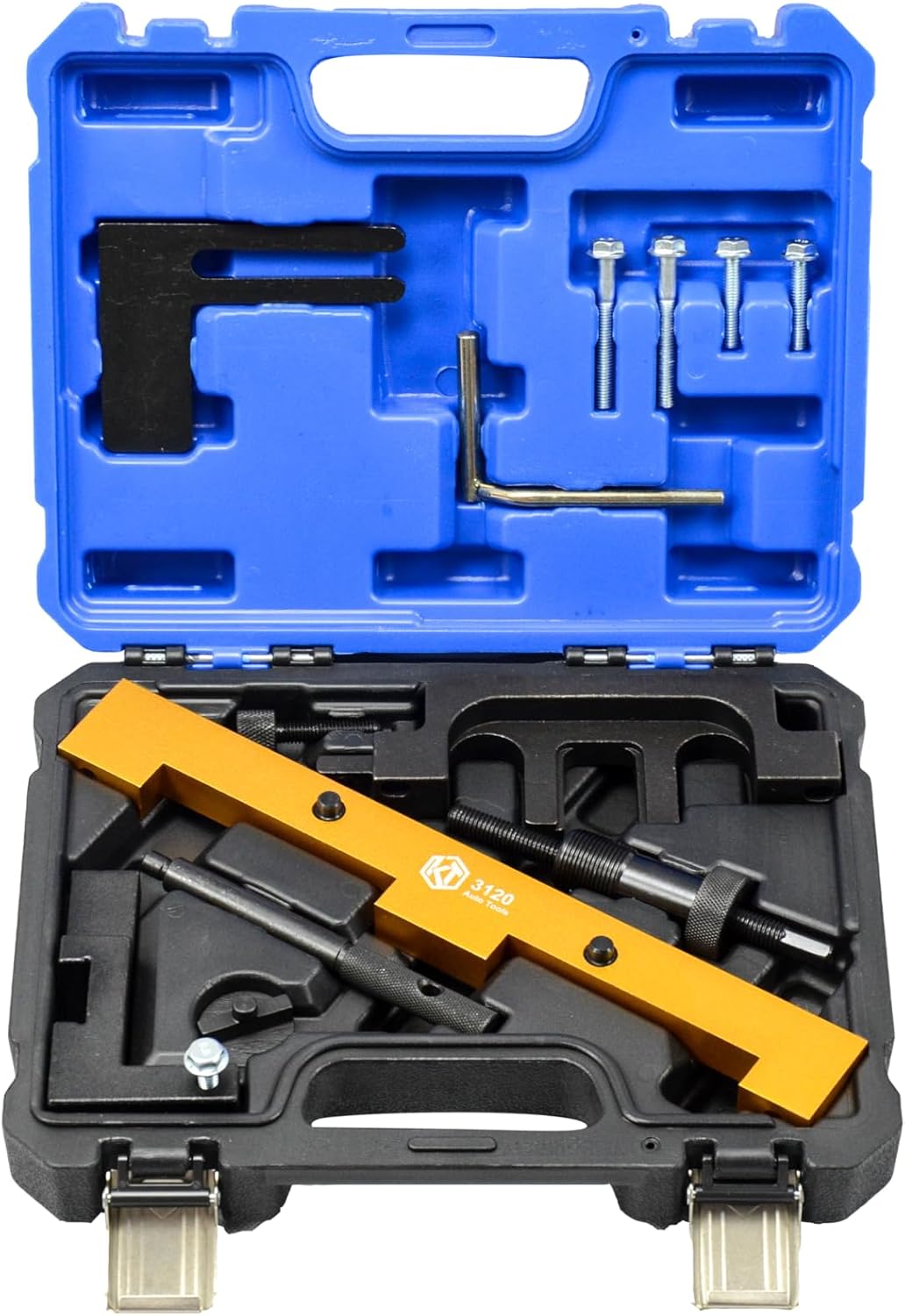

Engine Camshaft Locking Timing Tool for BMW Z4 318i 320i 316i 118i N42 N46 N46T E87

The Engine Camshaft Locking Timing Tool for BMW models such as the Z4 318i, 320i, 316i, 118i, and those with the N42, N46, and N46T engines is designed to assist with correctly setting the camshaft timing during engine assembly, disassembly, or repair. Here's a general guide on its use:

Purpose of the Camshaft Locking Tool:

The locking tool is used to keep the camshaft and crankshaft in the correct position while performing tasks like:

• Timing belt replacement

• Head gasket replacement

• Valve or camshaft work

• Preventing timing errors during engine reassembly

Common Characteristics:

• Precision Fit: These tools are typically made to fit the specific camshaft and crankshaft configurations of the BMW N42, N46, and N46T engines, ensuring that the timing remains accurate.

• Durability: Made from strong steel to withstand the stresses involved in engine work.

• Easy Alignment: The tool is often designed to be simple to use by locking the camshafts in place, preventing them from turning during timing adjustments.

Common Usage Steps:

1. Preparation:

   • Remove any components blocking access to the camshafts (e.g., valve cover, timing chain/gear covers).

   • Rotate the crankshaft to align the engine to Top Dead Center (TDC) on cylinder 1.

2. Tool Installation:

   • Insert the camshaft locking tool into the camshaft sprocket or gears to hold them in place.

   • Ensure that both the camshaft and crankshaft are locked in place. Double-check alignment with timing marks.

3. Engine Work:

   • Once the tool is in place and the engine is locked, proceed with your repair, such as replacing the timing belt, camshaft, or performing headwork.

4. Reassembly:

   • After completing the necessary repairs or maintenance, remove the locking tool and reassemble all components in reverse order.

   • Double-check the timing again before starting the engine.

Additional Considerations:

• Model-Specific Fitment: Ensure the tool you’re using is compatible with the engine in your specific BMW model (N42, N46, or N46T).

• Torque Settings: Always follow BMW’s official torque specifications when reassembling components to prevent damage.

• Timing Marks: Ensure that timing marks on the crankshaft and camshaft align properly before removing the tool.
